TSMOST, a specialized automotive parts specialist with differentiated impact and competitiveness.
Electronics Division
Hall Type
CSM H1
- Application : xEV Battery System
-
Specifications
- MG Core : Application of Stacking Method
- Current Range : ±400A
- Operating Range : -40~85℃
- Error : Current Error ±3%(F.S)
DCSM
- Application :
-
사양
- MG Core : Application of Dual Core Stacking Method
- Current Range : ±70A / ±350A
- Operating Range : -40~85℃
- Error : Current Error ±3%(F.S)
CSM SMD
- Application : xEV DC-DC Converter
-
Specifications
- MG Core : Application of Shield Method
- Current Range : ±300A
- Temperature Measurement Range : -40~105℃
- Error : Current Error ±1.6%(F.S)
ShuntType
CSM_48
- Application : 48V Battery System
-
Specifications
- Principle : Shunt Resistance
- Built-in Controller(16bit ADC)
- CAN Communication
- Current Range : ±350A
- Error : Current Error within ±1%(F.S)
CSM-V1/V3
- Application : xEV Battery System
-
Specifications
- Principle : Shunt Resistance
- Built-in Controller(16bit ADC)
- CAN Communication
- Current Range : ±400A
- Voltage Measurement Range : ±400V
-
Error
- Current Error within ±1%(F.S)
- Voltage Error within ±1%(F.S)
CSM_BJB
- Application : xEV Battery System
-
Specifications
- Principle : Shunt Resistance
- Built-in Controller(16bit ADC)
- CAN Communication
- Current Range : ±500A
- Voltage Measurement Range : ±500V
- Measurement target : Inverter +/-, V_BAT, V_OBC
-
Error
- Current Error within ±0.7%(F.S)
- Voltage Error within ±1%(F.S)
- Current Measurement Redundancy Support
- ISO26262 : ASIL A
- EMI : CISPR Class 3
CSM_Hybride
- Application : xEV Battery System
-
Specifications
- Principle : Shunt Resistance
- Mg Core : Shield Type
- Built-in Controller(16bit ADC)
- CAN Communication
- Isolated Hall and Shunt
- Current Range : ±350A
-
Error : Current Error
- Shunt within ±0.5%(F.S)
- Hall within ±3%(F.S)
CSM_BVW EV
- Application : xEV Battery System
-
Specifications
- Principle : Shunt Resistance
- CAN Communication
- Current Range : MAX, ±760A
- Error : Current Error within ±1%
FluxGate Type
CSM_Fluxgate
- Application : 48V Battery System
-
Specifications
- Principle : Fluxgate
- Current Range : ±300A
- Error : Current Error within ±0.3%(F.S)

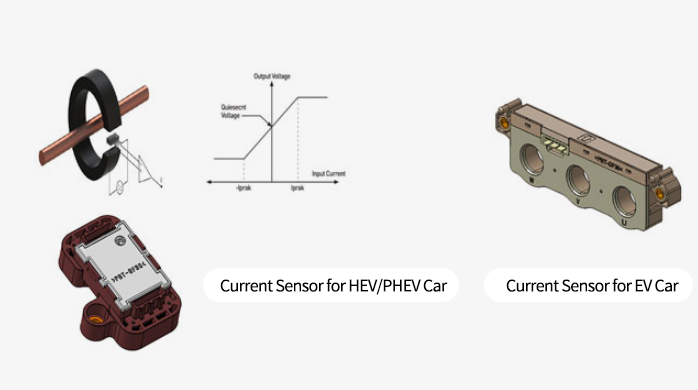

Product Application
Key Specifications
- Current Measurement Range : ±500A, ±700A
- Operating Voltage : 4.75V~5.25V
- Operating Temperature : -40℃~125℃
- Response Speed : Approximately 2 µs
- Measurement Accuracy : 2%
Application Fields
Sensors that measure the current of high-voltage batteries located within high-voltage relay boxes that supply or cut off power to the driving system of high-voltage battery packs

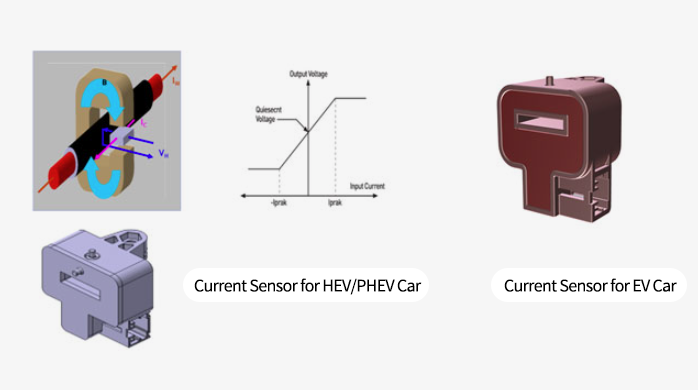

Key Specifications
- Operating Temperature : -40~85℃(SG2 Specifications : 125℃)
- Basic Principle : Non-contact Hall Effect Sensor
-
Measurement Range
- Current Sensor for HEV : ±100A Extended 700A
- Current Sensor for PHEV / EV : ±50A / 400A Extended to 700A
- Measurement Accuracy : ±2%
